Boundary Road Pump Station: a StreetBond quilt motif on a utility site

Utility infrastructure sites (pump stations, electrical substations, water treatment facilities) are a feature of every municipality. They're functional, they're necessary, and they're typically either invisible (enclosed in buildings) or visually unremarkable where they break the surface.

The Boundary Road pump station project took a different approach: using StreetBond® coatings in a quilt motif pattern to turn the surface around the installation into something that contributes to the neighbourhood streetscape.

What the photograph shows

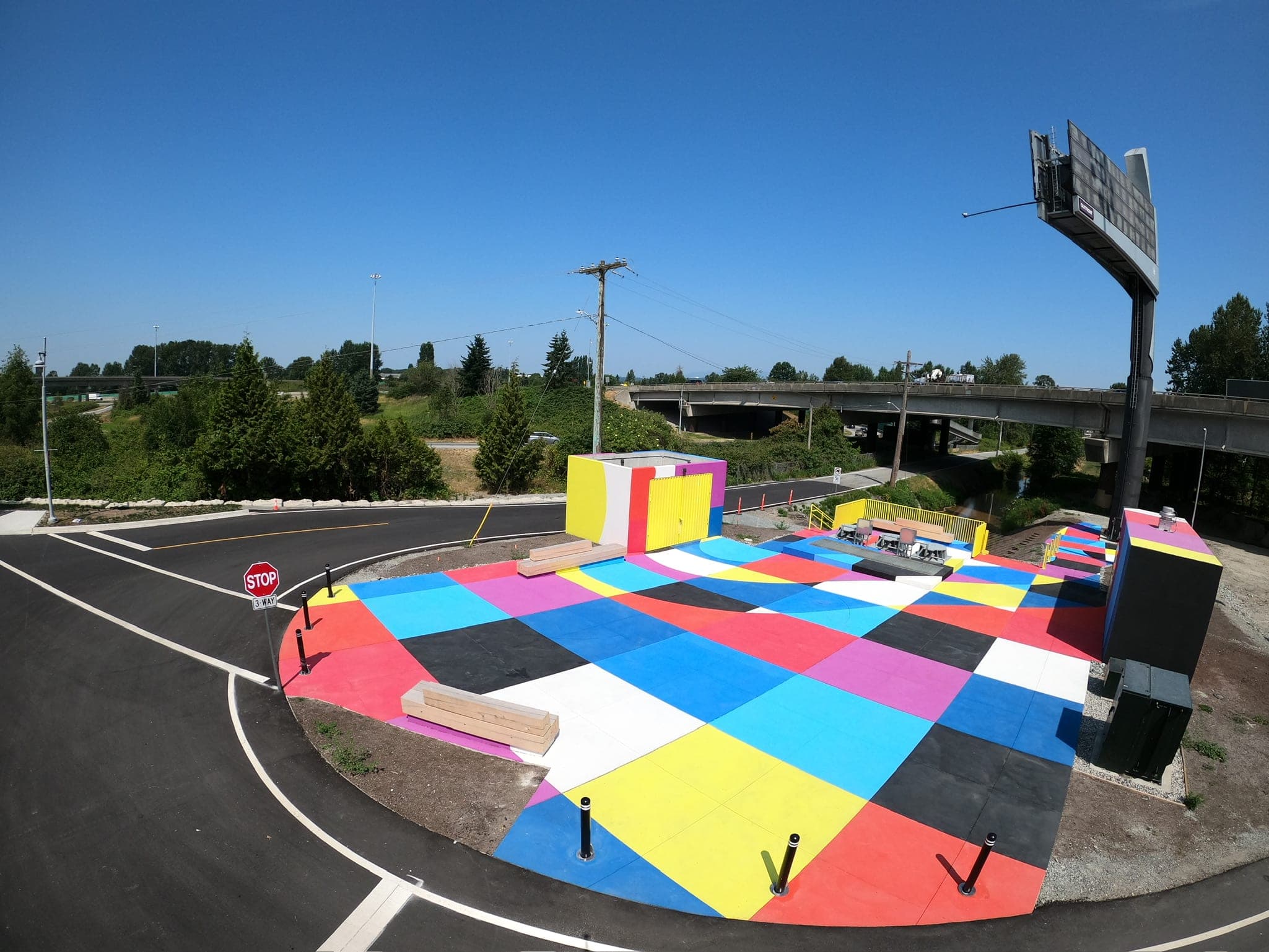

The lede photograph is the site from above, on a clear day. A field of large squares in eight colours (red, yellow, two blues, white, black, magenta and pink) fills the plaza around the pump station, runs to the edge of the road at the three-way stop, and wraps the steps down to the path beyond. Timber benches and a line of bollards sit on the pattern, and the pump station building itself carries the same colours, with a yellow gate. Behind it an elevated guideway crosses the frame, which is exactly the kind of setting that usually gets a chain-link fence and a gravel apron. The project record holds two more frames, including the steps.

Utility beautification as community investment

The quilt motif is a design choice with specific cultural resonance: quilt patterns are part of the textile heritage of many communities, and the grid-based geometry of a quilt translates effectively into pavement surface design.

Applied in StreetBond to the pump station site, the quilt pattern accomplishes several things:

1. It signals care: a utility site that has been treated with a designed surface is a utility site that the operator has thought about. That signals something to the neighbourhood.
2. It creates visual interest: a well-executed quilt pattern at ground level is genuinely engaging. Pedestrians passing the site see something worth noticing rather than plain utility infrastructure.
3. It establishes precedent: utility sites across a municipality that have been given similar design attention create a consistent civic character. The investment in one site argues for investment in others.

The technical application

The quilt pattern was laid out in StreetBond using multiple colours. The geometry of a quilt pattern is precise: the grid has to be consistent and the colour zones have to be clean-edged. We use CAD-referenced layout on installations like this to ensure the geometry is correct before the coating crew begins. The stairs take the pattern as well as the flat.

The system

Square One installs StreetBond under our decorative coatings service. The manufacturer's published facts: a water-based acrylic pavement coating that bonds to asphalt and to concrete, with the appropriate primer for each; more than 50 standard colours plus custom mixing, which is how a quilt gets eight of them; an anti-skid aggregate for wet surfaces; a UV-stable finish; and an 8+ year life cycle, refreshed rather than replaced. The StreetBond product page has the specification, and the public art gallery holds the wider record of artwork rendered in the surface itself.

For a utility or municipality

• Treat the apron as public realm. The ground around a pump station is a plaza whether or not anyone designs it; a pattern turns the leftover into a place.
• Design on a grid. A quilt, a checkerboard or a stripe survives the geometry of curbs, steps and equipment pads; a free-form mural fights them.
• Carry the colours up the walls. The Boundary Road station's building shares the palette of its plaza, which is why the site reads as one piece rather than a painted floor beside a grey box.

For municipalities and utilities considering beautification programs for infrastructure sites, send a photo of the site and a postal code to office@squareonepaving.com, call 604-612-6209, or use the contact form. We come out, look, and put a written quote together.
